The design and implementation of a structured cabling system is an essential component to ensure connectivity, efficiency, and reliability of communication networks in enterprise and organizational environments. A structured cabling project provides the physical infrastructure necessary to support the transmission of data, voice, and video effectively and adaptable as technological needs evolve.
Below are some of the important points to keep in mind.
Horizontal Cabling Distances

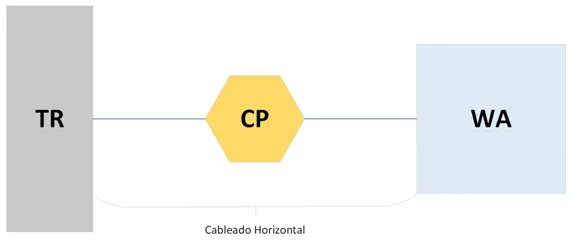

- The maximum horizontal cabling distance should be 90 m, regardless of the medium, between the telecommunications connector and the horizontal cross-connect.
TR: (TelecommunicationRoom) Telecommunications Room CP: (Consolidation Point) Consolidation Point WA: (Work Area) Work Area

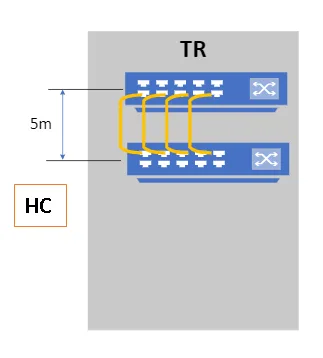

- The length of jumpers and patch-cords at the cross-connect, including equipment connections, should not exceed 5m according to TIA 568 standard.
TR: (TelecommunicationRoom) Telecommunications Room HC: (Horizontal Crossconnect) Horizontal Crossconnection

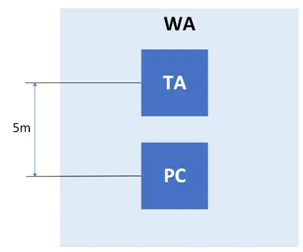

WA: (Work Area) Work Area
- For each horizontal channel (distance from the user equipment in WA to the equipment located in the TR), the maximum length is 100 m.
The Ally for Our Measurements: Certifier
The VIAVI Certifier system provides technicians with all the functions they need to quickly, thoroughly, and correctly certify compliance with all current and future cabling standards for both copper and fiber networks.
The Certifier10G solution is the most affordable system for testing and certifying copper networks up to Category 6A. Although not compatible with fiber or FA class, the Certifier10G system is a basic copper network certification instrument with the same advantages as the Certifier40G system.
What tests can we perform?
Permanent Link The Permanent Link (PL) test consists of the connection from a patch panel to a telecommunications outlet (horizontal cabling) using Permanent Link test adapters at each end of the link under test.Channel The Channel (Ch) test consists of the connection from an active device (such as a router) in a data rack, to a telecommunications sales point (horizontal cabling), and the patch cables connecting at both ends using Channel test adapters at each end of the link under test. The recommended length for the patch cable from the patch panel to the outlet is 5 meters.
In each case, we must use the corresponding adapters for each type of test.
Image: Selection of permanent link test.

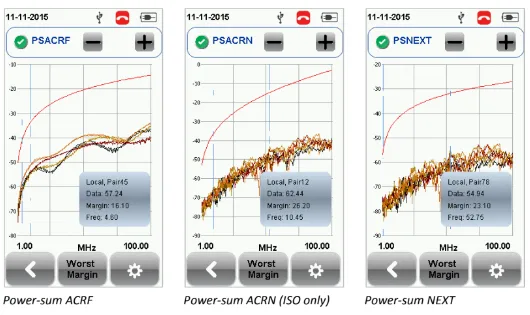

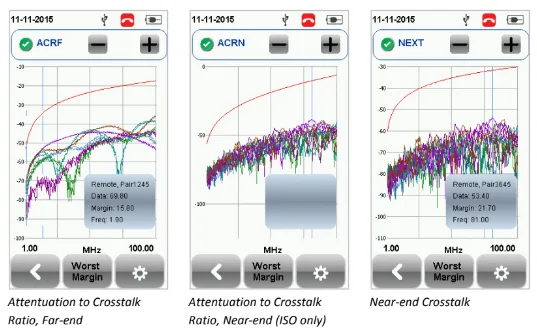

What can we observe?
