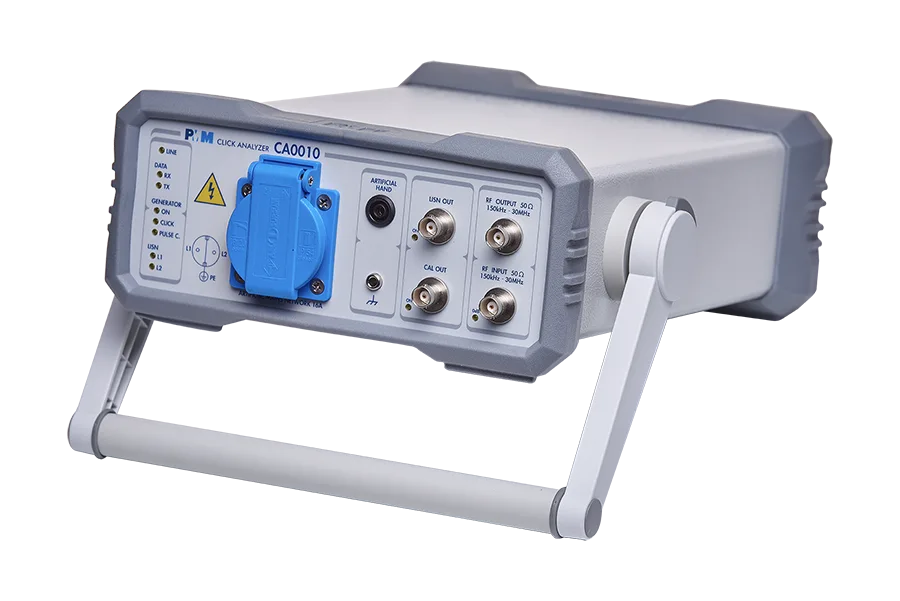

The innovative click rate analyzer, or "Click Analyzer," model CA0010, together with the NARDA 9010F EMI Receiver, represents the utmost expression in discontinuous disturbance measurement technology in compliance with the CISPR 14-1, IEC / EN55014-1, and CISPR 16-1-1 standards. Under this very simple-to-configure and easy-to-operate architecture, the following functionalities are integrated:
The CA0010 unit is provided with an associated software solution:
PCA – NARDA PMM Click Analyzer software for viewing measurements stored in the unit's memory, capable of measuring each event with a resolution of 500 µs.
PCG – NARDA PMM Click Generator software for running complex CISPR standard test routines
Highlights
- A single-phase 16A LISN (Line Impedance Stabilizing Network) that can be used for conducted emission tests
- Change counter with variable threshold current setting
- Fully integrated calibrator with verification of CISPR click and pulse sequences (no external equipment required).
- Ability to handle an external three-phase LISN for loads of more than 500A
