ER8000

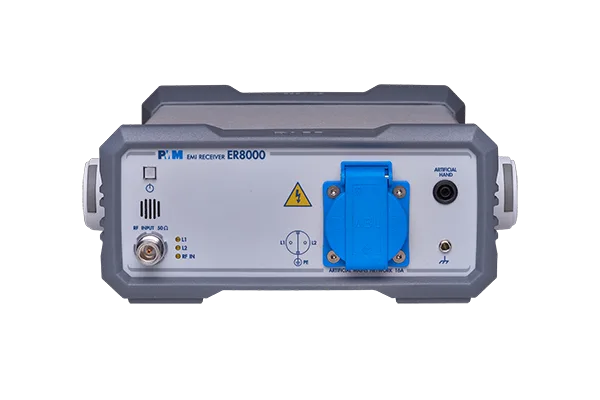

Extra compact, flexible, and easy to use, the PMM-NARDA ER8000 is an EMI (ElectroMagnetic Interference) receiver used to ensure compliance with the CISPR 16-1-1 standard for conducted and radiated measurements from 9 kHz to 3 GHz.

Its innovative design with FFT sampling architecture optimizes measurement time, achieving sweeps as fast as two seconds in band B and one minute in bands C+D.

It features an efficient input preselector and a dedicated port for external devices such as an LISN (Line Impedance Stabilization Network) element, or the possibility of switching devices for much faster simultaneous testing of equipment.

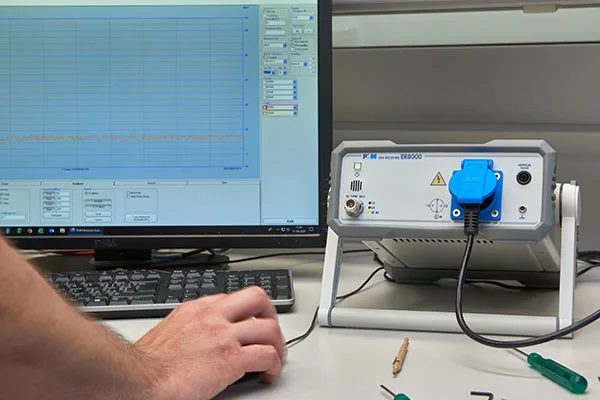

The PMM-NARDA ER8000 was designed to perform conducted emission tests to characterize devices under test quickly and efficiently, whether in the laboratory design process or in electromagnetic compatibility (EMC) certification laboratories.

It is available in two frequency ranges: 9 kHz to 30 MHz (ER8000 opt.00) or 9 kHz to 3 GHz (ER8000 opt. 01). It can be upgraded from the opt.00 version to the opt.001 version whenever the user wishes.
