Benefits of the VIAVI PON Power Meter:

• Integrates fiber inspection and test for an efficient easy-to-use solution that promotes best practices for handling fiber.
• Easily measures PON power and automatically certifies fiber-end face condition
• Generates certification report that prove that work quality meets industry standard or customer specifications
• Hands-free carrier for easy use inside homes or up on telephone poles
• Future proof, supports co-existence of PON services, e.g. deploying XG(S)-PON and/or NG-PON2 on existing G-PON networks

PON Power Meter Applications:

• Service activation and troubleshooting
• Simultaneous power measurement of all upstream & downstream wavelengths on live PON networks
• Supports tests in B-PON, E-PON, G-PON and XG-PON/10G-EPON networks
• Network activation/testing as part of 5G deployments

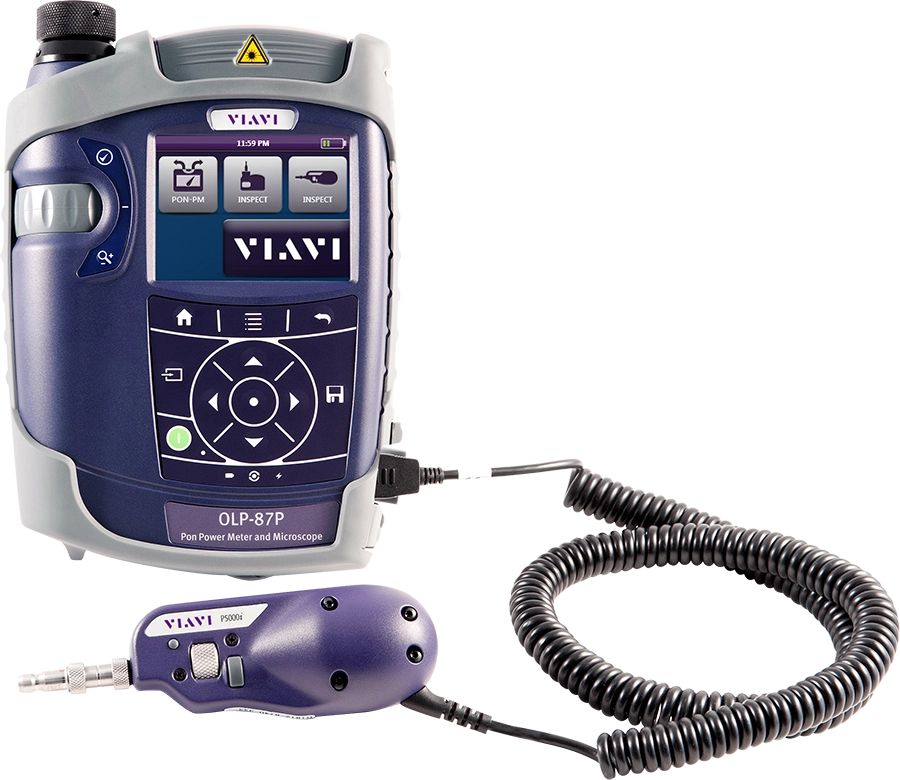

Key Features of the OLP-87 PON Power Meter:

• Through-mode capability for simultaneous measurement  and display of voice, data and RF video signals on fiber at 1490/1550/1577nm downstream and 1270nm/1310nm upstream for B/E/G/XG(S)/10G
• Individual, wavelength selective, through mode power level measurement for multiple NG-PON2 downstream and upstream channels
• Burst mode measurement for 1270nm, 1310nm and 1535nm upstream signals
• High performance broadband power-meter option
• Up to 10.000 measurement results storage downloadable through USB or Ethernet interfaces
• Automated pass/fail fiber inspection analysis with optional P5000i microscope Integrated patchcord microscope version available

Benefits

• Ensures first time right GPON network acceptance
• Reduces workflow complexity during service activation
• Speeds-up on-site troubleshooting  and facilitate service recovery
• Drives user workflow and behavior to eliminate the issues caused by poor practices.

Applications

• GPON ONT activation process verification
• OLT and ONT identification (serial number extraction)
• Automatic power level measurement and certification for Passive Optical Network (PON) signals
• In-service fiber plant qualification
• Rogue ONUs or alien devices identification
• Automated pass/fail fiber end-faces analysis — learn more about fiber inspection best practices

Key Features

• Simple and user-friendly color touchscreen
• Compact and lightweight instrument (<1kg)
• Data storage of up to 10.000 test results
• USB, Ethernet and WiFi interfaces
• 12 hours of battery life
• Patchcord microscope version and P5000i digital inspection probe compatibility

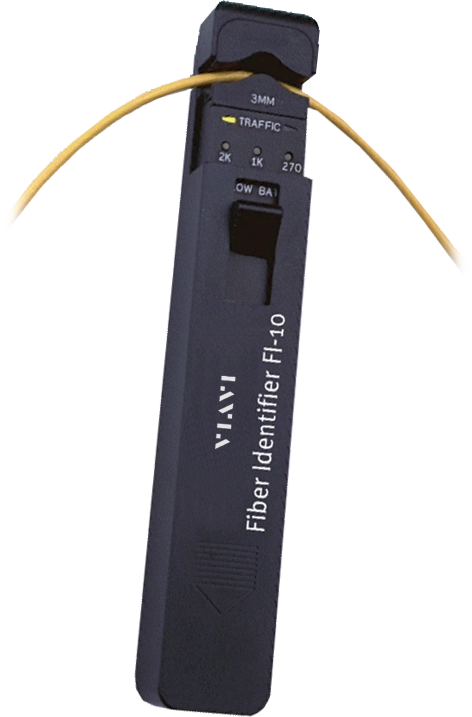

The FI-10 and FI-11 Optical Fiber Identifier are rugged, handheld, easy-to-use installation and maintenance instruments that identify optical fibers by detecting the optical signals being transmitted through a single-mode fiber. By utilizing local detection technology (non-destructive macro-bend detection), they eliminate the need to open the fiber at the splice point for identification. This, in turn, eliminates the probability of interrupting service.

Highlights

• Operates from 850-1700 nm.
• Compatible with most AT&T and Corning optical fiber.
• Uses non-destructive, macro-bending technology.
• Detection sensitivity of -40 dBm.
• Bi-directional traffic indication.

Applications

• Live fiber identification.
• Core power measurement and display on a 2-digit LED display (FI-11).
• 270 Hz, 1000 Hz, and 2000 Hz modulated tones detection.
• Relative zero power reading (FI-11).
• Power loss through a splice or a connector measurement (FI-11).

Key Features

• High-intensity LED indication of active signal transmission.
• Interchangeable adapter heads for jacketed, coated or ribbon fiber.
• Low battery indication.
• Operates using one hand.

• Avoid network downtime and damage with repeatable SafeChekTM easy-pull trigger system.
• Get the job done faster with a single LFI head that is compatible with multiple cable diameters (250μm to 3mm jacketed fibers).
• Increase reliability and avoid false readings with integrated ambient light shield.

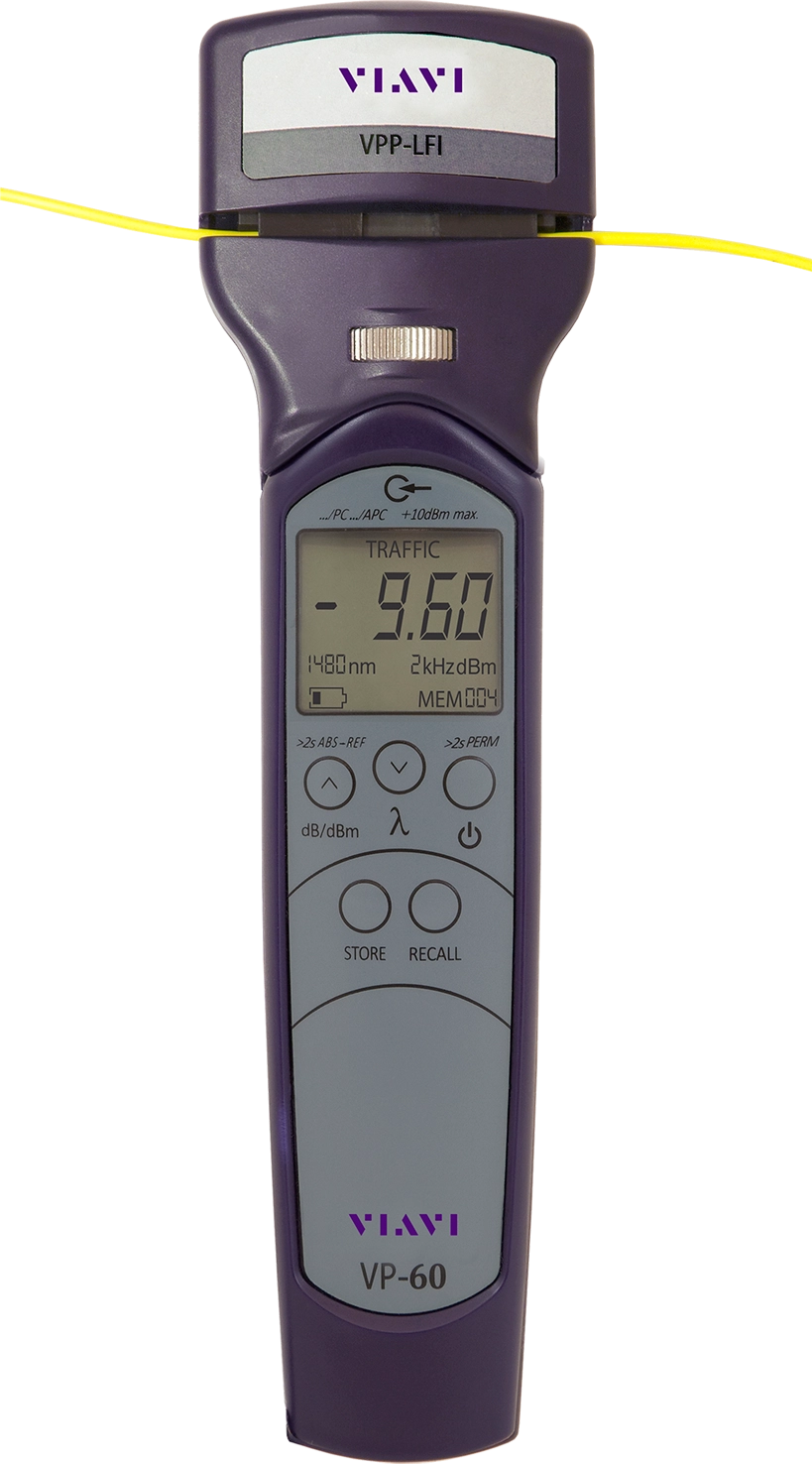

• Have twice the tool at half the price! The FI-60 LFI easily converts to a full-function OPM that stores, recalls, and exports results to a PC via USB.

• Easily detect the optical signal without having to disconnect the fiber.
• Installation, service, maintenance, or troubleshooting
• Integrate with FiberChek2 for combined inspection and test reporting.

• SafeChek easy-pull trigger system ensures repeatable engagement with fiber cable
• LFI head accepts multiple cable diameters (250μm to 3mm jacketed fibers
• Durable metal input adapters (2.5 and 1.25mm) for OPM
• Measure both absolute (dBm) and relative (dB) power
• Store and recall up to 100 OPM readings

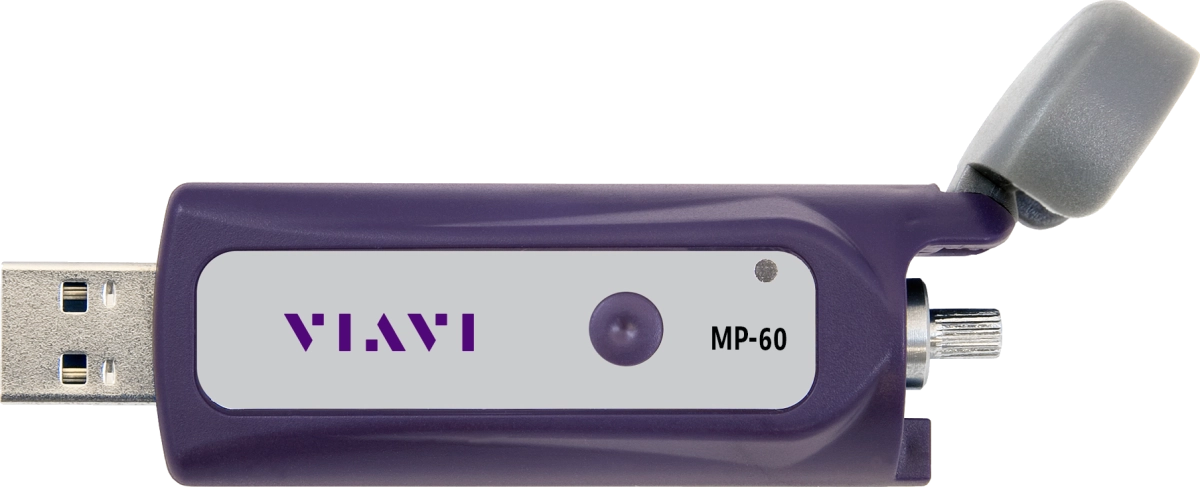

Miniature USB Power Meter

The MP-series Power Meter from VIAVI is a miniature device that measures optical power via a USB 2.0 connection to a PC/laptop/smart device. This unique device makes digital processing of optical power measurements possible and integrates directly with the VIAVI FiberChekPRO and FiberChekMOBILE software, the industry-leading automated fiber inspection and analysis program. Its size, functionality, and ease-of-use makes it an extremely useful and practical tool when testing optical power levels. The simple, straightforward, and intuitive software interface offers a well-organized digital solution to both fiber inspection and test procedures.

Highlights

• Compatible with FiberChekPRO and FiberChekMOBILE fiber inspection and analysis software; integrated reporting capabilities within FiberChekPRO and FiberChekMOBILE
• Simple, accurate, and instant push-button measurement results can be electronically archived, logged, and printed
• Dedicated for all single-mode and multimode applications including LAN, TELECOM, CATV, and DWDM testing

Applications

• Measure general power and loss as well as high power applications in long-haul, metro, access and local area networks with wavelengths ranging from 800 to 1650 nm
• Use with a VIAVI light source to detect modulation frequency and identify individual fibers
• Integrate with other VIAVI test devices (T-BERD/MTS-5800, SmartOTDR, HST-3000, CellAdvisor, DSAM), PC (FiberChekPRO), or mobile device (FiberChekMOBILE) to run tests, export data, provide certification reports and manage acceptance criteria

Key Features

• Lightweight, small form-factor design for ultimate portability
• Generates measurements in dB, milliwatt, and dBm
• Automated data logging capabilities
• Automatic wavelength detection

Features:

A family of pocket-sized and low-cost optical power meters for the installation and maintenance of singlemode and multimode fiber optic networks.

VIAVI SmartPocket Optical Power Meters (OLP-34, OLP-35, and OLP-38) offer an excellent price/performance ratio in a rugged and pocket-sized housing for straightforward use in the field. Mainly used to measure optical power level (dBm) in premises, telco, or CATV fiber optic networks, they also can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for insertion loss measurement.

Highlights

• Rugged and pocket-sized design
• Large display combined with an easy-to-use interface
• Auto-wavelength recognition function for saving test time and error-free testing
• Internal data storage (100 results)
• Report generation with OFS-355 software

Applications

• The OLP-34 (Ge) is dedicated to LAN/WAN Access and Enterprise multimode or single mode applications.
• The OLP-35 (InGaAs) covers all standard singlemode Telecommunication networks including Passive Optical Networks (PON)
• The OLP-38 (Filtered InGaAs) is the higher power (+26dBm) version for any CATV (with Analog RF transmission), or amplified DWDM system applications

Key Features

• Extra long battery lifetime (>200 hours).
• 3-years calibration period
• Universal optical interface for all 2.5 mm / 1.25 mm connector
• Individually settable wavelengths per 1 nm step
• Micro USB interface for power supply or data transfer
• Can be part of the SmartPocket Optical Test Kits

.

Benefits

•  Ready when you need it – ultra-high reliability and high-availability
  • Dependable, German design
  • Designed with outdoor environment in mind
  • Low power consumption for extended continuous use
  • Instant On – no boot time
• Easy to use
  • High-Visibility backlight graphical display with context-sensitive softkeys
  • Clear pass/fail information
  • Automatic upload of results via VIAVI Mobile Tech App
  • Supports co-existence of G/E-PON and XGS-PON/10G-EPON services

Key Features

• Single test port connection for dual wavelength measurement
• Simultaneous power level measurements for both G/E-PON & XGS-PON/10G-EPON services
• Storage for over 1000 test results and PC download capability
• Bluetooth low energy connectivity to the VIAVI Mobile Tech App
• 4-way powering – alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
• 3-year recalibration period

Applications

• Measuring optical power levels for both G/E-PON and XGS-PON/10G-EPON services
• Multi-service PON deployment and installs
• Network Build and Maintenance for
  • Enterprise/LAN
  • FTTA (fiber to the antenna) for 5G
  • FTTH

Products

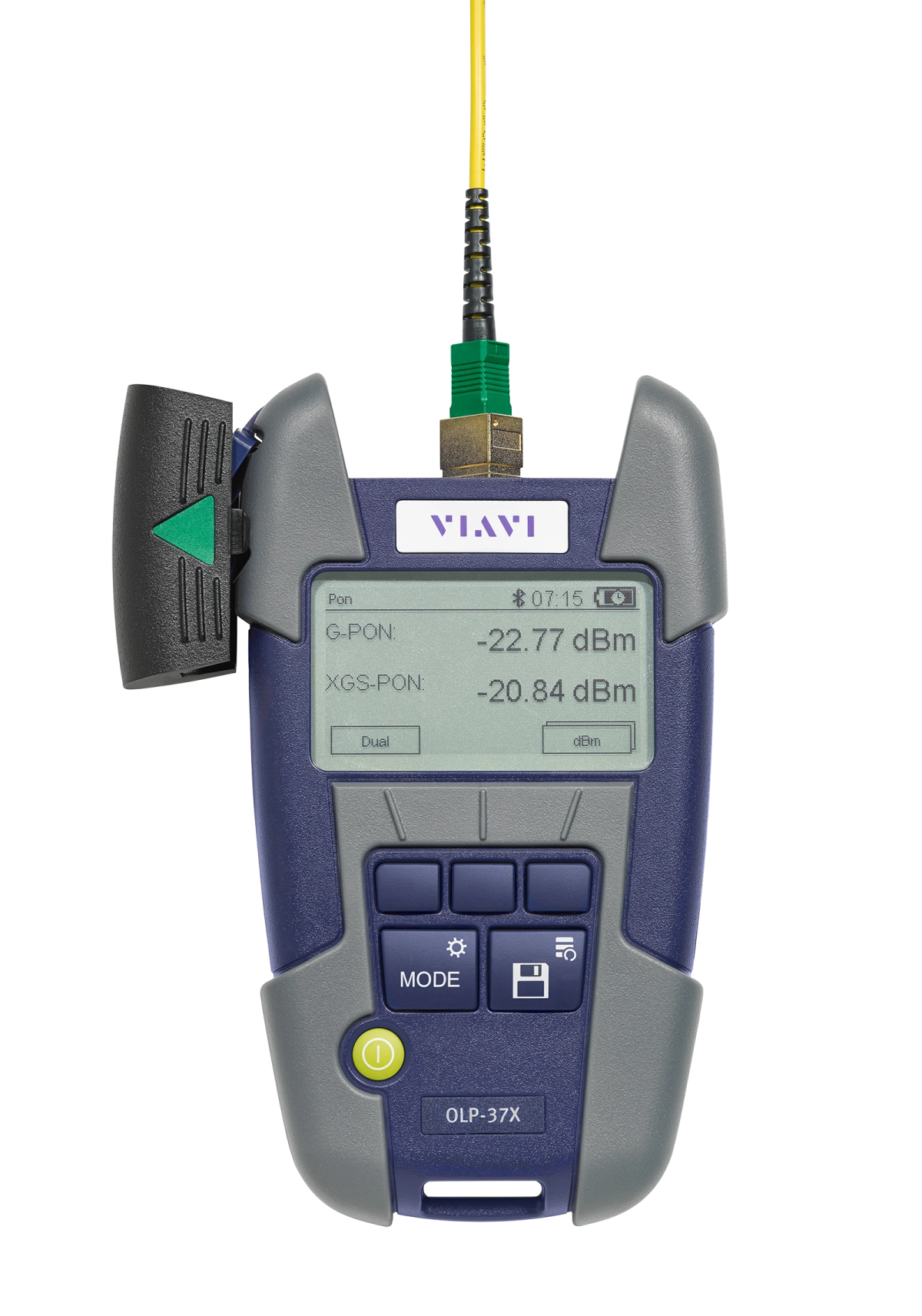

• The OLP-37XV2 has a single mounted SC adapter providing simultaneous selective power measurement of both G/E-PON (1490 nm) and XGS-PON/10G-EPON (1577 nm) wavelengths.

The Network & Service Companion is a compact hand-held device combining multiple test interfaces  (PON, Ethernet, WiFi) with VIAVI ‘OneCheck’ applications to make network validation and multi-gig service testing a simple and speedy process for all frontline techs and installers, be they beginner or expert.

Benefits

• Empowers techs with simple, fast, and comprehensive multi-gig service activation testing and troubleshooting
• Combines PON delivery and in-premises service distribution testing with PON, Ethernet and high-end WiFi test interfaces
• One button press ‘OneCheck’ application makes network validation and service testing a simple and speedy process
• Enables accurate benchmarking of service delivery to and distribution within a premises with clear and fast demarcation/segmentation of any issues
• Drives compliance of best practice to reduce or prevent customer complaints, call-backs, and churn

Key Features

• Robust, field-ready, screenless design
• Throughput testing up to 10 Gbps (SpeedCheck, Ookla Speedtest, TrueSpeed RFC-6349, iPerf)
• Ethernet L2/L3 loop back support for Y.1564 & RFC-2544 tests up to 10 Gbps
• VIAVI Fusion (centralized test system) leverages NSCs as remote-controlled test agents
• High-end WiFi test shows coverage, channel noise, airtime, and throughput
• Automated ‘OneCheck’ ensures all required tests are performed while on site
• Job Manager helps techs manage their Jobs, Test Results & Reports
• On-board report generation and submission via the cloud (StrataSync) or direct email (smart phone / tablet)
• VIAVI Mobile Tech app support
